15dot4-tools Hardware: Dresden SAM7S USB Stick

Archived from the site that ran here before WordPress, and reproduced as written — links and prices and "coming soon"s included. Nothing on this page is maintained.

Description

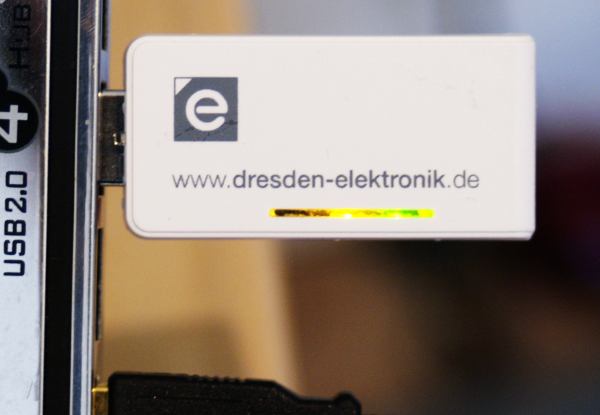

These USB Sticks have a SAM7S256 device on them, giving much more SRAM and processing speed compared to the AVR USB stick. This allows the sniffer to perform under much higher load where the AVR version will drop packets.

Sources

There is one source for these sticks: Dresden Electronik. http://www.dresden-elektronik.de/shop/prod118.html

Programming Tools

The USB sticks bring out the JTAG programming leads on a 50mil header. Dresden Electronik sells a programming adaptor, the SAM-ICE-Adaptor which can be used to connect any JTAG tool to the stick http://www.dresden-elektronik.de/shop/prod123.html.

JTAG Programmers which could be used include:

  • Atmel SAM-ICE, cost about $100 USD. Can be used as a debugger.
  • Olimex JTAG Tools, cost 20-40 EUR depending on model. Can be used as a debugger.
  • Variety of other tools, google “SAM7S JTAG Programmer” or similar.

Programming

You can see the hardware-specific page at Sam7sProgramming
